Monitor extension (Solarish only)

Realtime monitoring of important system parameters via websocket (status lights)
Shortterm monitoring (last 60s) of cpu%, w%, b% and iops/s of reads, writes and waits
Realtime Update of pages (2 Min after last access)
Disk Location of LSI SAS2 slots (ZFS WWN disk-id to physical slot mapping)
Editing features (menus, actions and translations)
Logs and hashed with internal infos and return values of napp-it commands on a page load
Health-Status for multiple napp-it appliances (with status lights) via netscan or on appliance groups
Vnic, Vlan and Link-Aggregation settings
Disk, SAS2 Bays and Smartvalues are discovered in the background and buffered > 1h to increase GUI performance
Bridge Management in Menu System > Network Eth (2016.05dev up): Use OmniOS like a 1/10 G switch

How to setup

You need a licence key on every server (you can request evaluation keys)
To request a license key, you need the machine-ID from menu Extensions > Get Machine ID
Register the machine ID key: copy/paste the whole key-line into menu extension-register, example:
complete h:m123..4m90 - 20.06.2022::VcqmhqsmVsdcnetqsmVsTTDVsK

Usage of a Pro license is restricted to subscription time or perpetual with an unlimited edition.

Screenshots

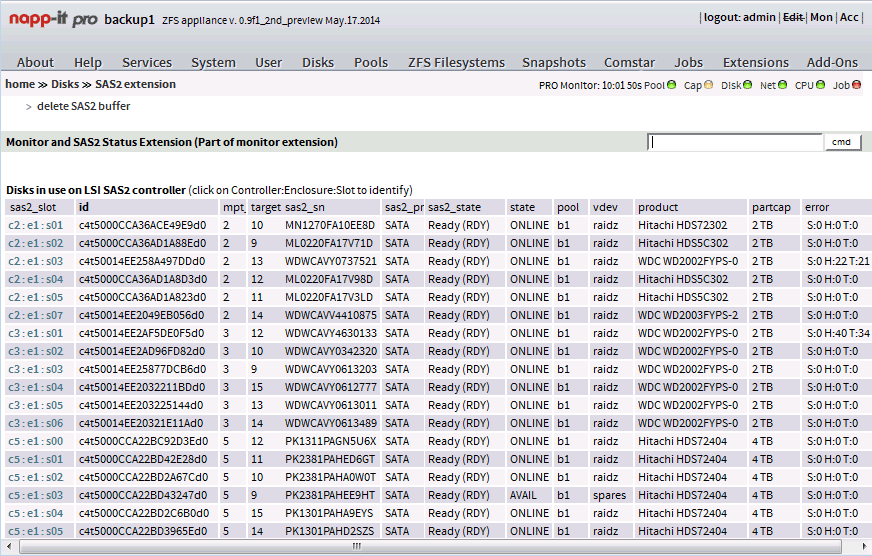

SAS2 Slot monitorand sas targets numbers (you need target number to identify disks from system error logs):

sas2_slots

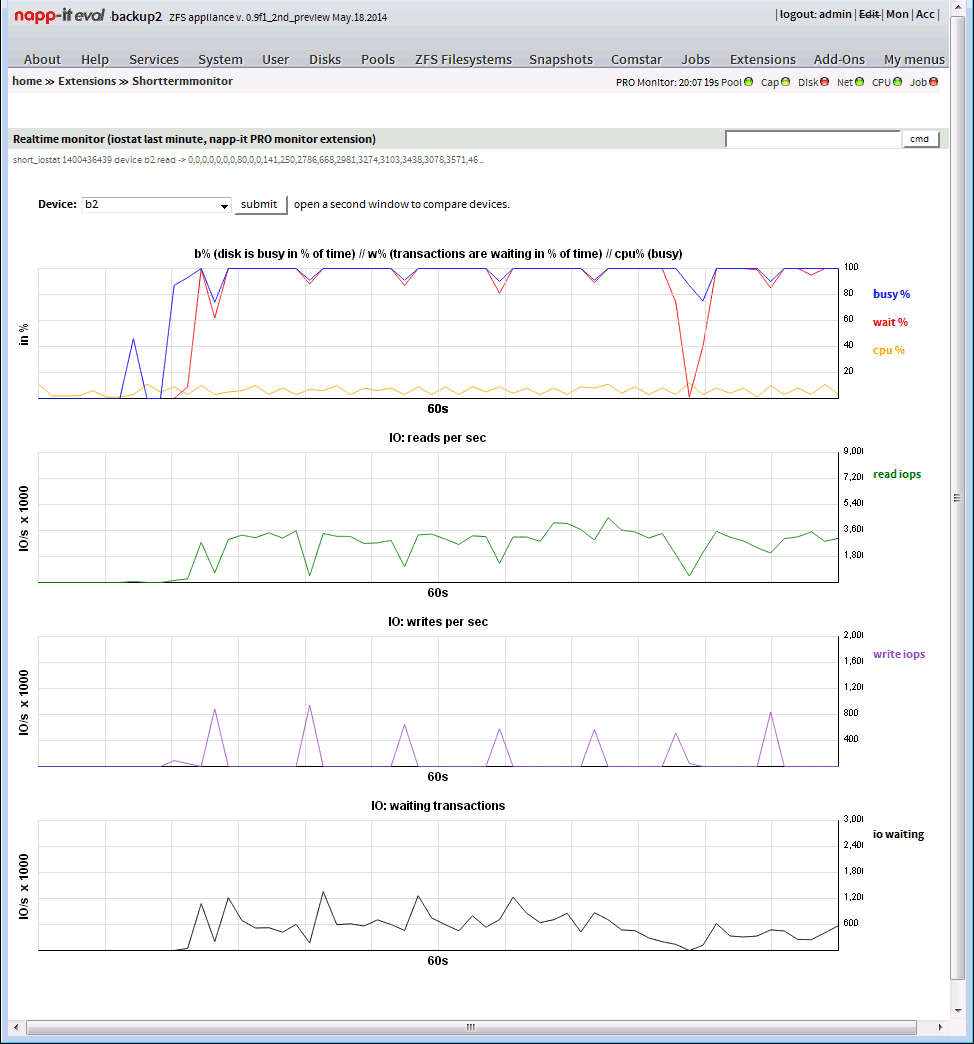

Shortterm-monitor (after starting a scrub)
